Aneng AOS03 3-in-1 Dual Channel 50MHz Bandwidth Oscilloscope Multimeter

Description

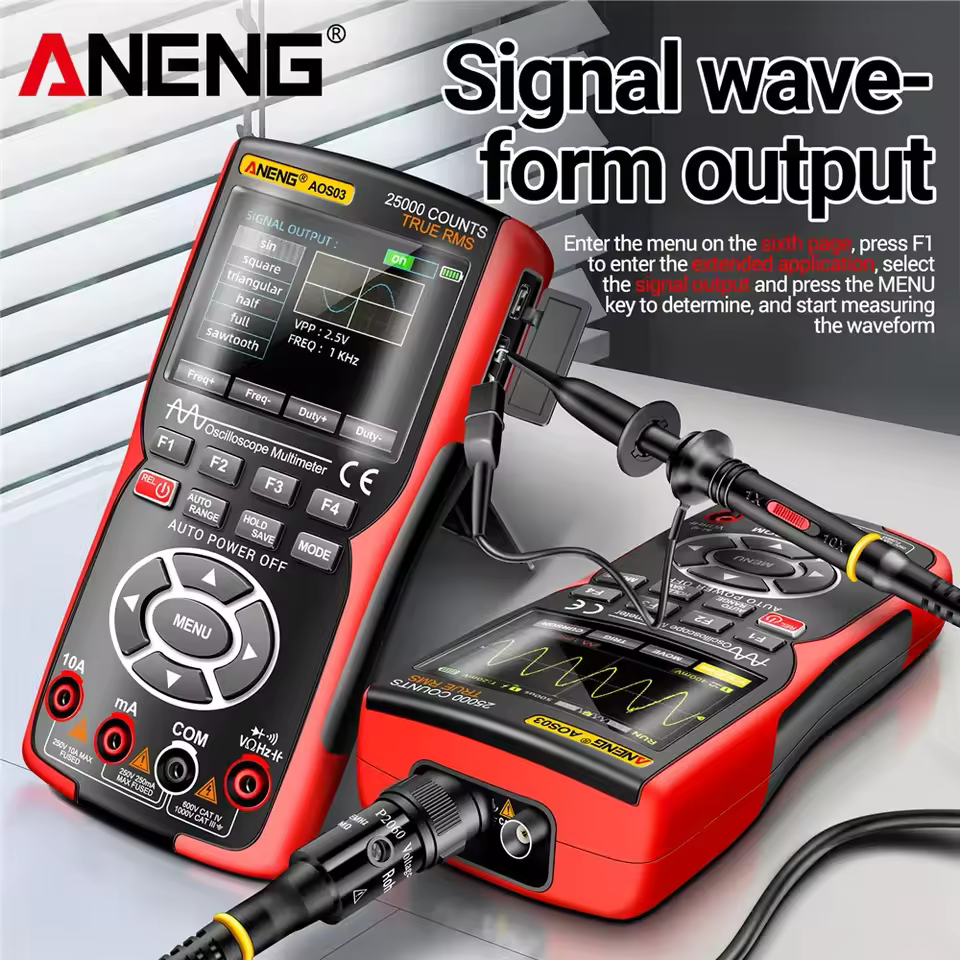

• • • 3-in-1 multifunction device: Dual-channel oscilloscope, digital multimeter, and signal generator in one handheld unit

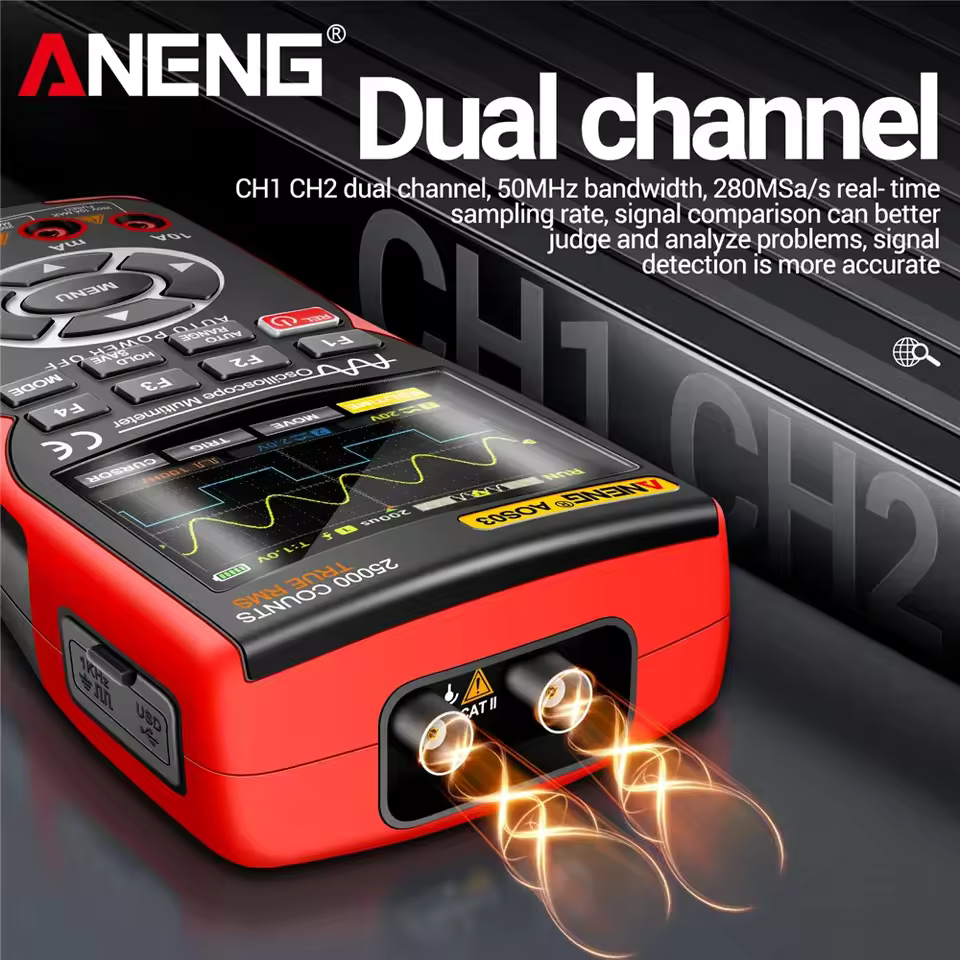

    • Oscilloscope bandwidth: 50 MHz, dual-channel real-time waveform display

    • Sampling rate: Up to 280 MSa/s for precise signal capture

    • Vertical sensitivity: 20 mV/div – 10 V/div

    • DC voltage range: 0 – 1000 V

    • AC voltage range: 0 – 750 V

    • AC/DC current range: 0 – 10 A

    • Resistance range: 0 – 250 MΩ

    • Capacitance range: 0 – 99.99 mF

    • Frequency range: 0 – 999.9 kHz

    • Continuity test: Audible buzzer for fast circuit checking

    • Diode test: Forward voltage measurement

    • Display: 3.5-inch color IPS screen with waveform visualization

    • Design: Compact handheld form factor for lab, workshop, and field use

    • Applications: Electronics troubleshooting, signal analysis, education, and maintenance
