ANENG Q1 Standard Digital Multimeter

Description

ANENG Q1 true-rms digital multimeter button Analog 9999 AC/DC voltage ammeter current Ohm with bar LED counts auto/manual. Please note that you must read the user manual before using, otherwise you will burn the device by the wrong operation.

Features:

• Brand name: ANENG
• Model number: Q1
• Display (LCD): 9999 count
• Changing: automatic/manual
• Material: ABS + TPE
• Update rate: 3 times/second
• Ture RMS: Yeah
• Data retention: Yeah
• Relative value measurement: Yeah
• Low battery indicator: Yeah
• Backlight: Yeah
• auto shut off: Yeah
• Operating: Heat 0~40°C / Moisture 75%
• Storage: Heat -20~60°C / Moisture 80%

Specifications:

• DC voltage (V): 999.9mV/9.999V/99.99V/999.9V ± (0.5% + 3)
• DC voltage (mV): 9.999mV/99.99mV ± (0.5% + 3)
• AC voltage (V): 999.9mV/9.999V/99.99V/750.0V ± (1.0% + 3)
• AC voltage (mV): 9.999mV/99.99mV ± (1.0% + 3)
• DC current (mA and A): 999.9mA/9,999A ± (1.0% + 3)
• AC current (mA and A): 999.9mA/9,999A ± (1.0% + 3)
• Resistance: 99.99 ± (1.0% + 3)
• Resistance: 999.9/9.999k/99.99k/999.9k/ ± (0.5% + 3)
• Resistance: 9.999M ± (1.5% + 3)
• Resistance: 99.99M ± (3.0% + 5)
• Condenser: 9.999nF ± (5.0% + 20)
• Condenser: 99.99nF/999.9nF/9.999F/99.99F/999.9F ± (2.0% + 5)
• Condenser: 9,999mF ± (5.0% + 5)
• Frequency: 99.99Hz/999.9Hz/9,999 kHz/99.99 kHz/999.9 kHz/2,000 MHz ± (0.1% + 2)
• Duty cycle: 1% ~ 99% ± (0.1% + 2)
• Diode: yes
• Continuity: yes

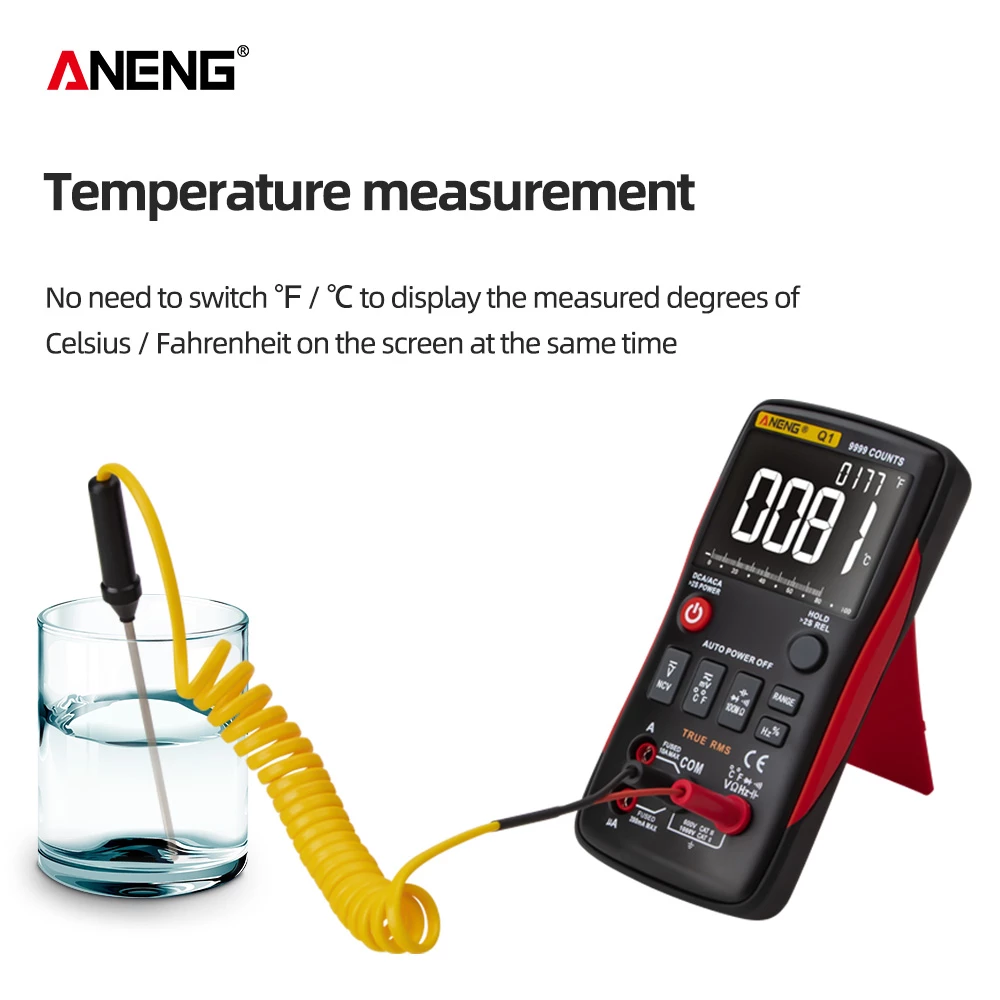

• Heat: (-20 ~ 1000) °/(-4 ~ 1832) ° ± (2.5% + 5)
• Strength: 2 * 1.5V AA batteries (Not included)
• Sample rate:3 times per second

Packing content:

• 1 x multimeter
• 1 x Test lead + temperature sensor
• 1 x user manual
• 1 x storage bag

Notes:

1. Do not exceed the maximum value specified in the specification.
2. Do not enter voltage in current mode, resistance mode, diode mode, continuity mode or temperature mode.
3. Do not use the product when the batteries or the battery cover are not inserted properly.
4. Turn off the product and remove the test leads from the test points before replacing the batteries or fuses.
5. The input voltage does not exceed 36 V DC or 25 V ac when you are in the setting of the measuring current.

Note: This device doesn’t include a battery.
