AC\DC ANENG ST194 Digital Multimeter Clamp

ST194 6000 Counts LCD Digital Current Clamp Meter DC AC Ammeter Voltage Voltmeter Ohmmeters Multimeter Resistance Ohm Tester Electrician Tool

Feature:

• The meter is a portable and professional measuring instrument with an easy for users to read LCD digital display and a backlight. It is convenient for one-handed operation, measuring with overload protection and low battery indication. Whether it is used by professionals, factories, schools, enthusiasts or families, it is an ideal multi-functional tool.
• The meter is used for AC current, DC current, AC voltage, DC voltage, frequency, resistance, capacitance, temperature, diode, line continuity and non-contact voltage detection.
• The meter has auto range function.
• The meter has a reading hold function.
• The meter has an auto-off function.

Specification:

• Maximum allowable voltage between measuring terminal and ground: 600V DC or 600V AC
• Operating altitude: up to 2000 m
• Display: LCD
• Maximum display value: 5999 digits
• Polarity display: automatic indication, “-” means negative polarity
• Over range display : “OL” or “-OL”
• Sampling time: about 3 times/second
• Unit display: with function, power unit display
• Auto-off time: 15 minutes
• Power supply: DC power supply 3.0V
• Jaw opening size: 25mm
• Cable diameter: 23 mm more than not
• static operating current: 12.0 Up ‘not more than (without backlight)
• Battery type: 1.5V AAA battery (not included)
• Temperature coefficient: 0.1X accuracy/℃ less
• Operating temperature: 18℃-28℃
• Storage temperature: -10℃-50℃
• Size: 184.0×66.0x32.5mm
• AC current: 6~600A +- (3% + 20)
• DC current: 0~600A +- (3% + 8)
• DC voltage: 0~500V +- (0.5% + 5)
• AC voltage: 0~450V +- (1.2% + 5)
• Frequency: 0~9.999MHz +- (0.1% + 2)
• Capacitance: 0 ~ 99.99mF +-(2% + 20)
• Temperature test: -20℃~1000℃ +-(1.9% + 5d)
• Resistance: 0 ~ 10M Ω +- (0.8% + 3)

Packing List:

• 1 X multimeter (without battery)

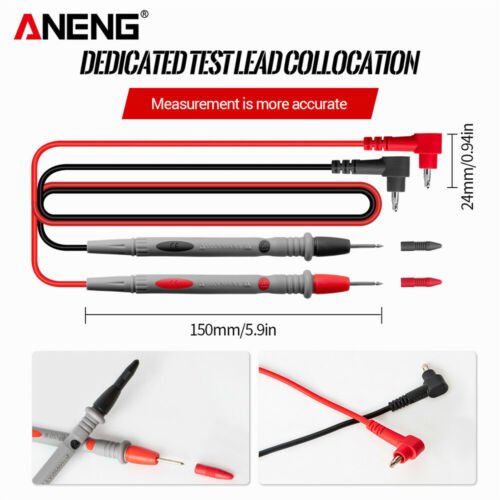

• 2 X Test lines
• 1 X thermocouple
• 1 X user manual
• 1 X canvas storage bag
• 1 X packing box

Note: This device doesn’t include a battery.
