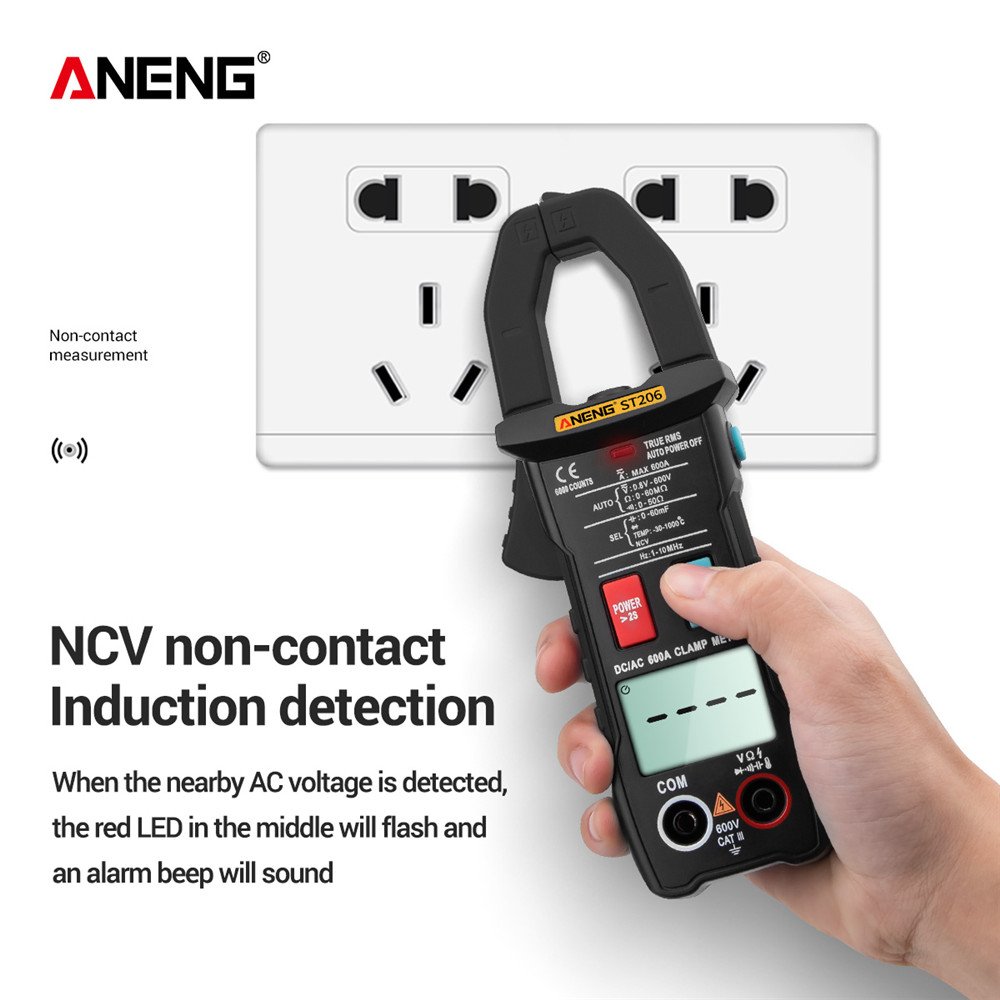

AC\DC ANENG ST206 Digital Clamp Meter Multimeter

Description

General Characteristics

• Display: liquid crystal display (LCD)
• Maximum display: 6000 (3 3/4) bit automatic polarity display
• Measurement method: double integral A/D conversion
• Sampling rate: about 3 times per second
• Over range display: The highest position shows “OL”
• Low voltage display: symbol appears
• Working environment: (0~40)°, relative humidity<80%
• Power: AAA 1.5V battery (Batteries not included)
• Volume (size): 165×64.5×31mm (L×W×H)

Technical Specifications

• DC voltage (DCV): 6V-60V-600V ±(0.5%+3)
• AC voltage (ACV): 6V-60V-600V ±(1%+3)
• AC current(ACA): 6A-60A-600A ±(2.5%+8)
• DC current(DCA): 60A-600A ±(2.5%+30)
• Resistance: 6kΩ-60kΩ-600kΩ-6MΩ-60MΩ ±(0.5%+3)
• Frequency measurement: 6Hz-60Hz-600Hz-6kHz-60kHz-600kHz-1MHz ±(0.1%+2)
• Capacitance measurement: 6nF-60nF-600nF-6μF-60μF-600μF-6mF ±(2%+5)
• Temperature measurement : -30~1000° / 22~1832° ±(2.5%+5)

Package Includes:

• 1* Instruction manual
• 1* Multimeter (without battery)
• 1* Pair of test leads
• 1* Temperature probe
• 1*Thermocouple
• 1* Packing box

Note: This device doesn’t include a battery.
