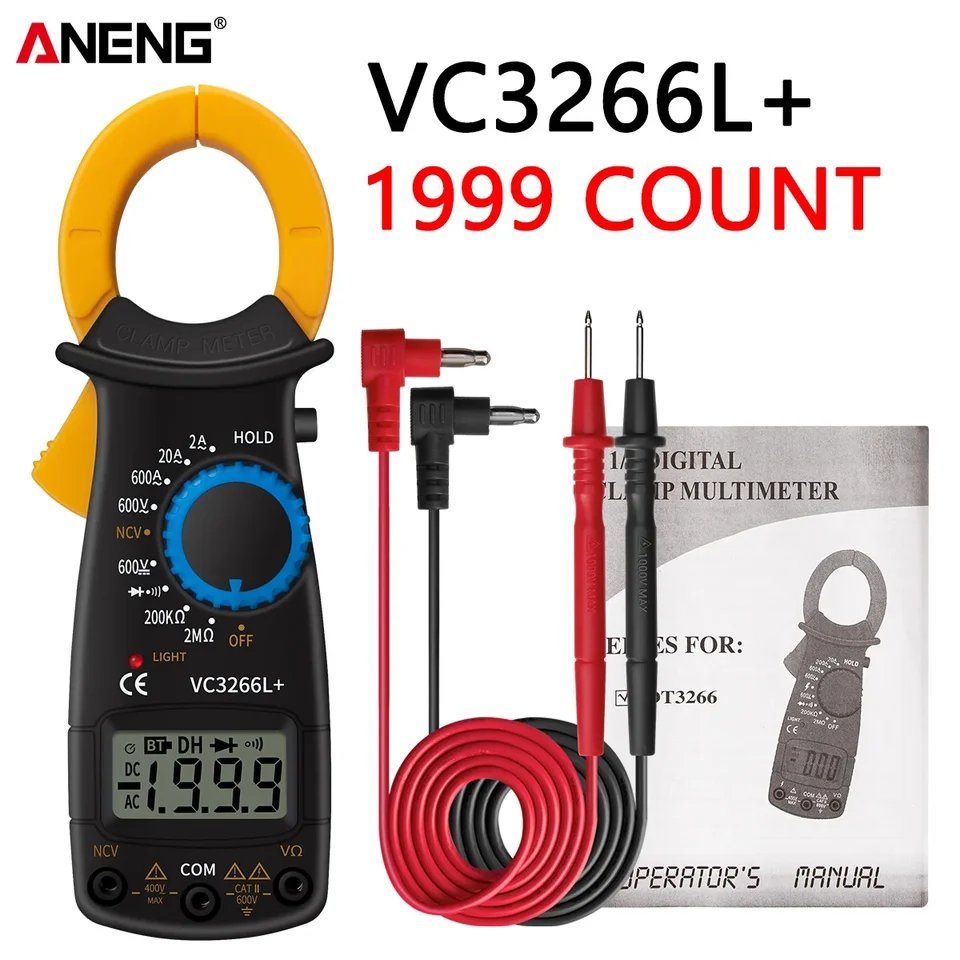

ANENG VC3266L+ Digital Clamp Meter

Description

This meter uses large-scale integration and unique function circuits, it can measure AC/DC voltage, AC current, resistance, diode, buzzer, ncv, and fulfill audible continuity test. With phase indication and live wire identification function, this clamp meter is an ideal tool for electricians.

Specifications:

• Maximum display: 1999, automatic polarity display
• Sampling rate: 2 times per second
• DC voltage: 600 V, ± (0.8% + 3dgt)
• AC voltage: 600V, ± (1.2% + 5dgt)
• AC current: 20-200-600A, ±(2%+5dgt)
• Resistance: 2K-200K-2M Ω, and ± (1.0% + 3dgt)
• Overload display: “1” is displayed
• Working environment: 0 ℃ ~ 40 ℃, <80% RH
• Storage environment: -10 ℃ ~ 50 ℃, <85%RH
• Power: 2 size AAA batteries (without battery)
• Low battery indication: yes

Packing list:

• 1 * ANENG VC3266L + clamp meter
• 1 * Test pen
• 1 * user manual

Note: This device doesn’t include a battery.
