Anern 6200W On/Off Grid Hybrid Solar Inverter

Original price was: 490.00 $.Current price is: 450.00 $.

Pure Sine Wave Inverter

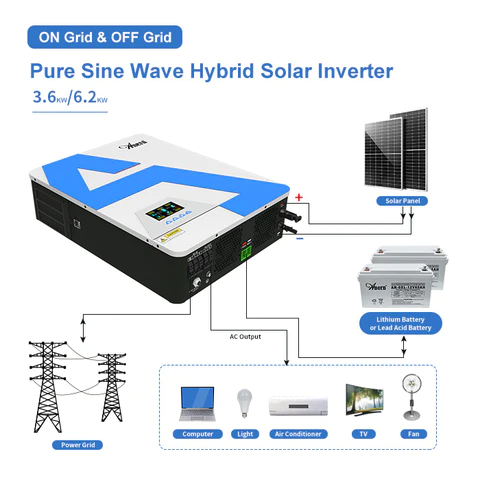

Self-consumption and feed-in to the grid
Configurable AC Solar Charger priority via LCD setting
Auto restart while AC is recovering
Smart battery charger design for optimized battery performance
Communicate with WIFI

Other people want this. 15 people have this in their carts right now.

Category: MPPT Solar inverter Tags: Hybrid, Inverter, ON-OFF Grid

Description
Reviews (0)

Description

Description

MPPT Solar Charging Mode

INVERTER MODEL:2KW
PV Array Power: 6500W
Nominal PV Voltage: 360Vdc
PV Array MPPT Voltage Range: 90Vdc~450Vdc
PV Array Open Circuit Voltage: 500Vdc
Max Charging Current (AC charger plus solar charger): 120Amp

Grid-Tie Operation

INVERTER MODEL: 2KW
Nominal Output Voltage: 220/230/240 VAC
Feed-in Grid Voltage Range: 195~253VAC
Feed-in Grid Frequency Range: 49~ 51±1Hz
Nominal Output Current: 1A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC): 97%

Inverter Mode Specifications

INVERTER MODEL: 2KW
Rated Output Power: 2KW
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 230Vac±5%
Output Frequency: 50Hz
Peak Efficiency: 93%
Nominal DC Input Voltage: 48Vdc

To View Datasheet Press Here
