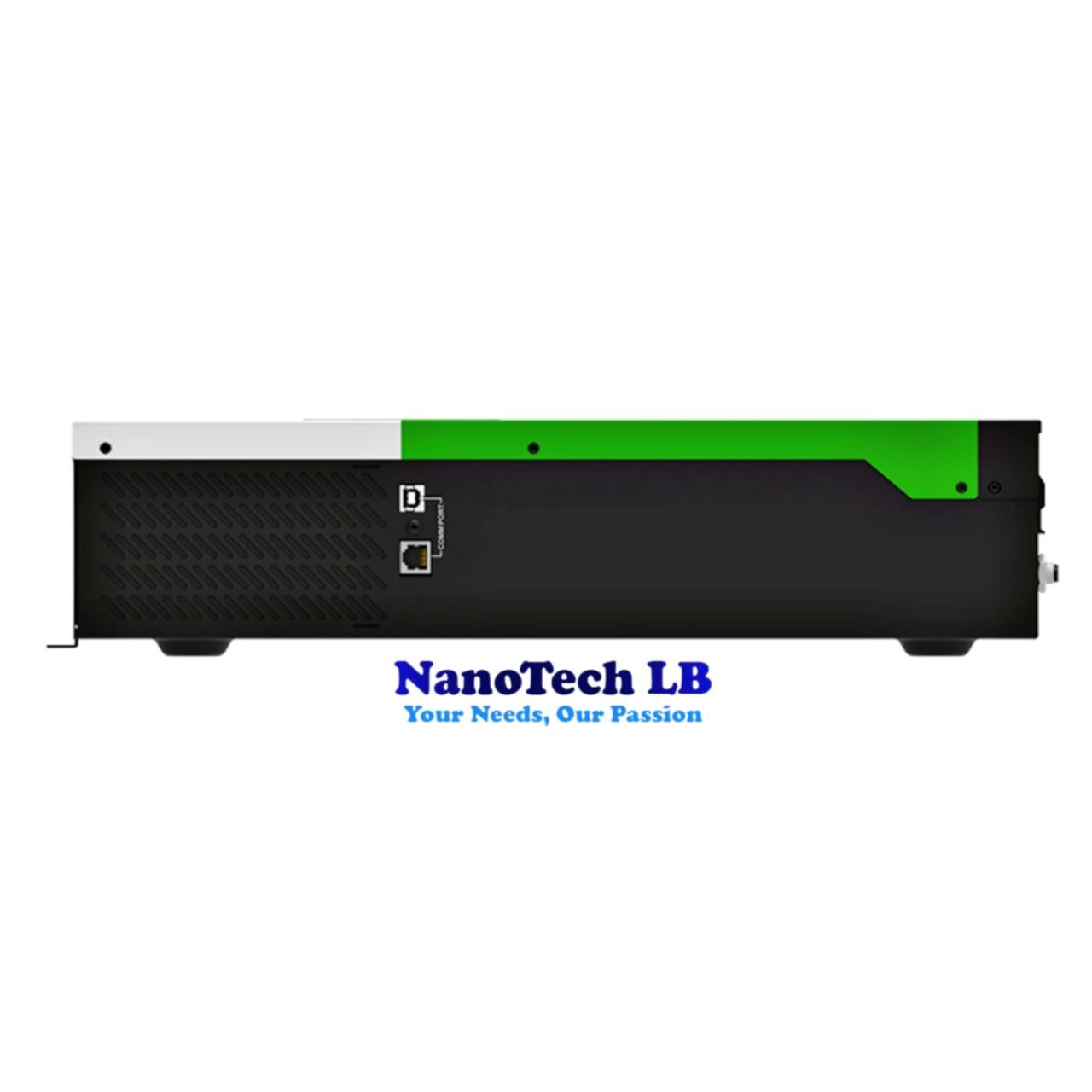

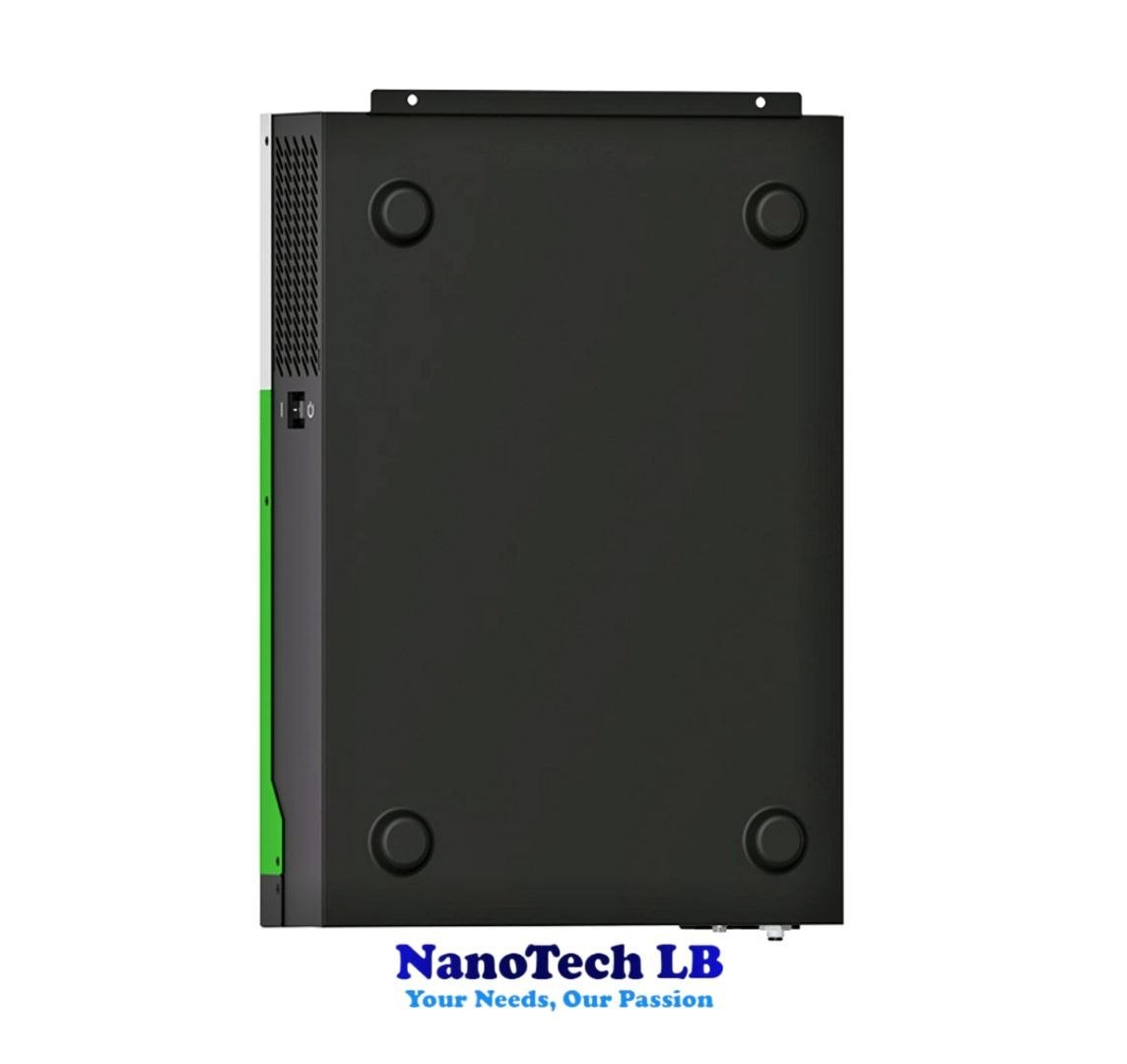

Bluesun Solar Inverter Hybrid On/Off Grid 5.5KW 48V On Solar Inverters Max Parallel 12 Units

Description

• MODEL : BSM-5500BLV-48
• CAPACITY : 5.5KVA/5.5KW
• Parallel Capability : Yes, Max to 12 Units

INPUT

• Nominal Voltage : 220VAC
• Acceptable Voltage Range : 170-280VAC(For personal Computer)；90-280VAC(For Home Appliances)
• Frequency : 50/60 Hz (Auto sensing)

OUTPUT

• Nominal Voltage : 220/230VAC±5%
• Surge Power : 11000VA
• Frequency : 50/60 Hz
• Waveform : Pure Sine wave
• Transfer Time : 10ms(For personal Computer)；20ms(For Home Appliances)
• Peak Efficiency (PV to INV) : 96%
• Peak Efficiency (Battery to INV) : 93%
• Overload Protection : 5s@>=15C% load; 10s@110%~150% load
• Crest Factor : 3:01
• Admissible Power Factor : 0.6-1 (inductive or capacitive)

BATTERY

• Battery Voltage : 48VDC
• Floating Charge Voltage : 54VDC
• Over-Charge Protection : 63VDC
• Charging Method : CC/CV
• Solar Charger& AC Charger
• Solar Charger Type : MPPT
• PV Array Power : 5500W
• PV Array Open Circuit Voltage : 500VDC
• PV Array MPPT Voltage Range : 120VDC-450VDC
• Solar Input Current : 18A
• Solar Charge Current : 100A
• AC Charge Current : 60A
• Charge Current : 100A

PHYSICAL

• Dimensions, D x W x H(mm) : 482x290x113
• Package Dimension^ D x W x H(mm) : 565x380x190
• Net Weight (Kgs) : 10
• Communication Interface : USB/RS23  Dry contact

ENVIRONMENT

• Operating Temperature Range : -10°C to 50°C
• Storage temperature : -150 60°C
• Humidity : 5% to 95% Relative Humidity (Non-condensing)
