BLUESUN PURE SINE WAVE SOLAR INVENTER WITH CHARGER OFF GRID 3.5KW

Description

• MODEL: BSM-3500LV-24
• Rated Power: 3500VA/3500W

INPUT

• Voltage: 230VAC
• Selectable Voltage Range: 170-280VAC(for personal computers) / 90-280VAC(for home appliances)
• Frequency Range: 50Hz/60Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 230VAC±5%
• Surge power: 7000VA
• Efficiency(Peak) PV to INV: 97%
• Efficiency(Peak) BAT to INV: 94%
• Transfer Time: 10ms (for personal computers) 20ms (for home appliances)
• Wave form: Pure Sine Wave

BATTERY & AC CHARGER

• Battery Voltage: 24VDC
• Floating Charge Voltage: 27VDC
• Overcharge Protection: 33VDC
• Maximum charge current: 80A

SOLAR CHARGER

• PV Array Power: 4000W
• MPPT Range@ Operating Voltage: 120-450VDC
• Maximum PV Array Open Circuit Voltage: 500VDC
• Maximum Charging Current: 100A
• Maximum Efficiency: 98%

PHYSICAL

• Dimension D*W*H(mm): 440*300*100
• Net Weight (kgs): 11kg

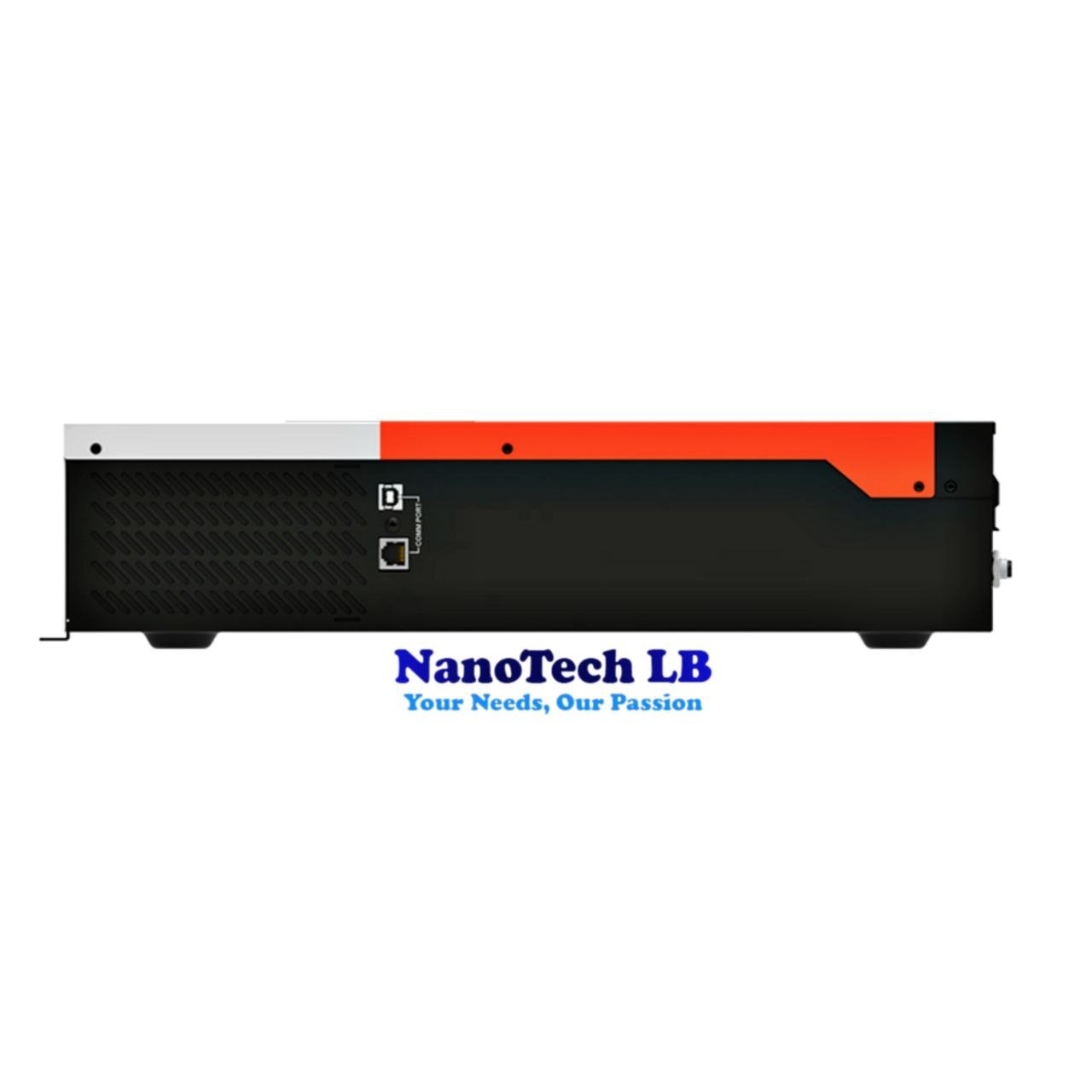

• Communication Interface: USB/RS232(Standard)

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity(Non-condensing)
• Operating Temperature Storage: 0°C  to 55°C
• Temperature: -15°C to 60°C
