Description

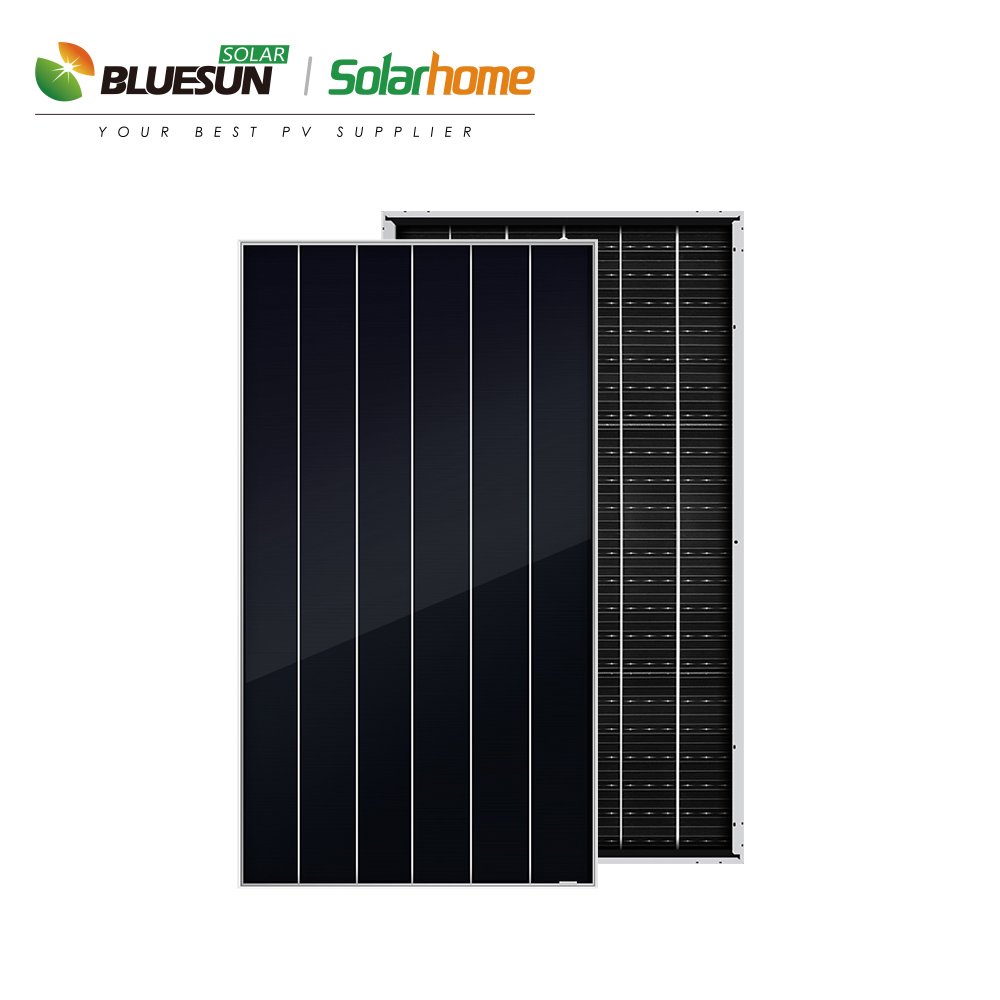

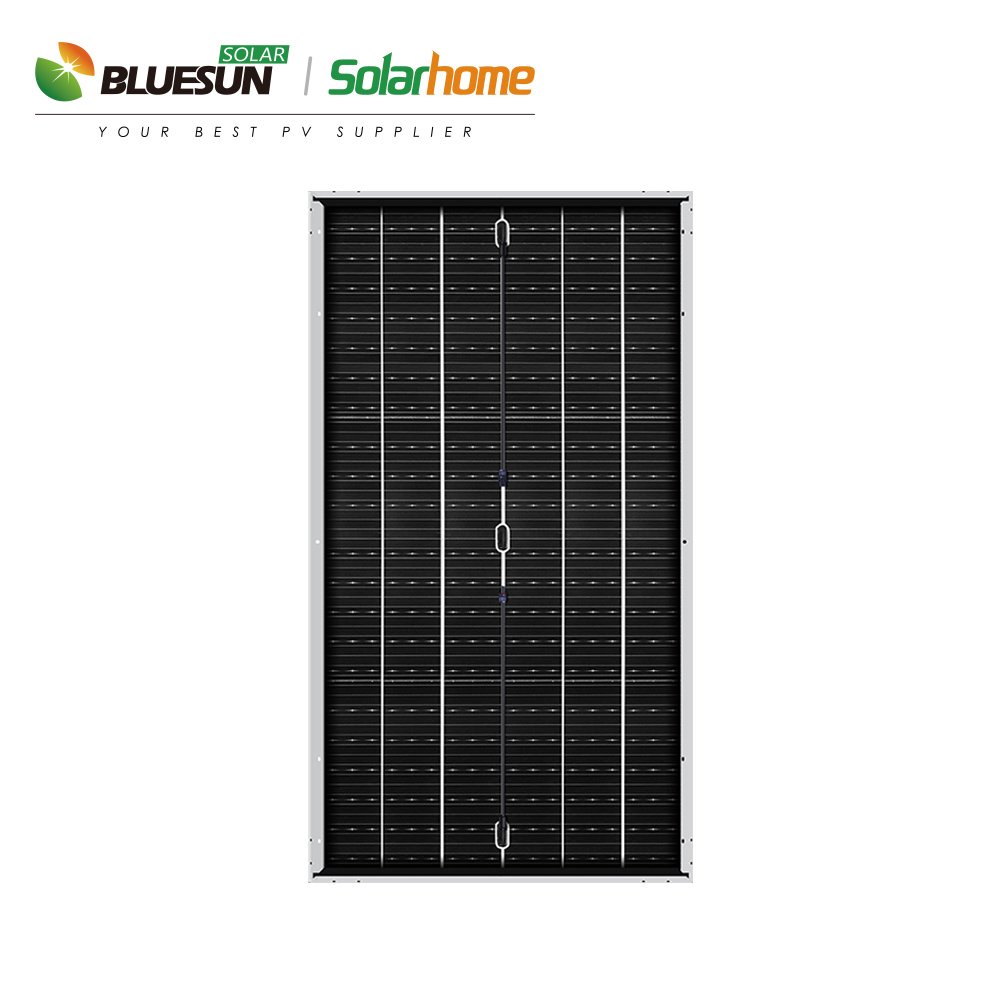

- Solar Cell : Shingled Double Glass Solar Panel
- Number Of Cells : 408(68*6)
- Power Range : 655W-670W
- Size : 2355*1303*35mm
- Model: Bifacial Shingled 670W
- Max Power(PMAX) [W]: 670
- Open Circuit Voltage(VOC) [V]: 47.1
- Short Circuit Current(ISC) [A]: 18.23
- Max Power Voltage(VMP) [V]: 39.1
- Max Power Current(IMP) [A]: 17.14
- Module Efficiency [%]: 21.6
- Power Tolerance: 0~+3%
- Max System Voltage: DC 1500V(IEC)
- Max Series Fuse Rating: 30A
- Operating Temperature: -40 °C to + 85 °C
- STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G
To view Datasheet Click Here
