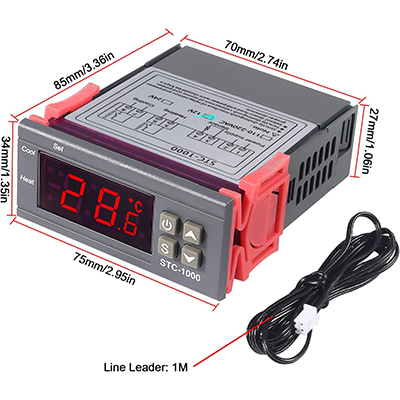

Digital Temperature Controller STC-1000 12V DC

Description

Property:

• It can control temperature and humidity.
• It can be connected with cooling/heating and humidifier/dehumidifying equipment at the same time.
• The heating/cooling function can be set separately for cooling and heating to protect the temperature controller from drastic change. Same with humidity control.
• Supporting temperature and humidity calibration
• Dual display window can display the measured temperature/humidity and also set the temperature/humidity

Specification:

• Model: STC-3028
• Input voltage: DC12V
• Measuring temperature range: -50° ~ +110°
• Measuring humidity range: 00% RH ~ + 100% RH
• Accuracy: ±1°, 0.1%RH
• Relay output contact capacity: 10A/240VAC
• Shell material: PC + ABS fireproof
• Sensor length: 1m

How to use:

• Set start temperature ( Humidity ): Press the “up” button once to display the start temperature ( Humidity ). Long press the “up” button for about 3 seconds, the required temperature ( Humidity ) can be adjusted with the Up and down keys
• Set the stop temperature ( Humidity ): Press the “down” button once to display the stop temperature ( Humidity ). Long press the button for about 3 seconds and the stop temperature ( Humidity ) number will flash. Required temperature ( Humidity ) can be adjusted with the up and down keys.
• Temperature (Humidity) Correction : Press the “Up” and “Down” button at the same time.
