Solar Panels LR5-72HPH-545M

Description

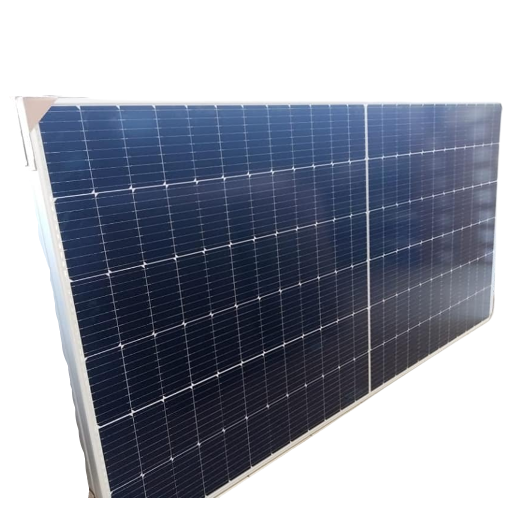

The Longi 545W LR5-72HPH 545 solar panel is a 545W monocrystalline module with 144 cells (6×24) from the Longi brand, one of the leading manufacturers in the world photovoltaic industry.

Specification:

• Maximum Power (Pmax): 545 Wp
• Voltage at Maximum Power (Vmpp): 41.8 V
• Current at Maximum Power (Impp): 13.04 A
• Open Circuit Voltage (Voc): 49.65 V
• Short Circuit Current (Isc): 13.92 A
• Panel Efficiency: 21.30%
• Power Tolerance (Positive): 3%
• Maximum Power (Pmax): 407.4 Wp
• Voltage at Maximum Power (Vmpp): 38.83 V
• Current at Maximum Power (Impp): 10.49 A
• Open Circuit Voltage (Voc): 46.68 V
• Short Circuit Current (Isc): 11.25 A
• Temperature: 45±2 °C
• Operating Temperature Range: -40~85 °C
• Temperature Coefficient of Pmax: -0.34 %/°C
• Temperature Coefficient of Voc: -0.265 %/°C
• Temperature Coefficient of Isc: 0.05 %/°C
• Maximum System Voltage: 1500 V
• Series Fuse Rating: 25 A
• Maximum System Voltage: 1500 V
• Series Fuse Rating: 25 A
