Thermal Imager Multimeter with IR Camera ANENG AR01

Description

Display & Design

• 2.4″ high-definition TFT screen (320×240) with adjustable brightness

• Compact and ergonomic handheld form

• Built-in rechargeable battery with USB charging (3.6V–4.2V, 2000 mAh)

• Languages: Chinese / English

Multimeter Ranges

• DC Voltage: 0 – 1000 V, resolution 0.001 V, accuracy ±(0.05%+3)

• AC Voltage: 0 – 750 V, accuracy ±(0.5%+3)

• DC Current: 0 – 10 A

• AC Current: 0 – 10 A

• Resistance: 0 – 250 MΩ

• Capacitance: 0 – 99.99 mF

• Frequency: 0 – 99.99 kHz

• Diode Test & Continuity (beeper)

• Data retention, waveform display, and screenshot storage support

• High resolution up to 25000 counts

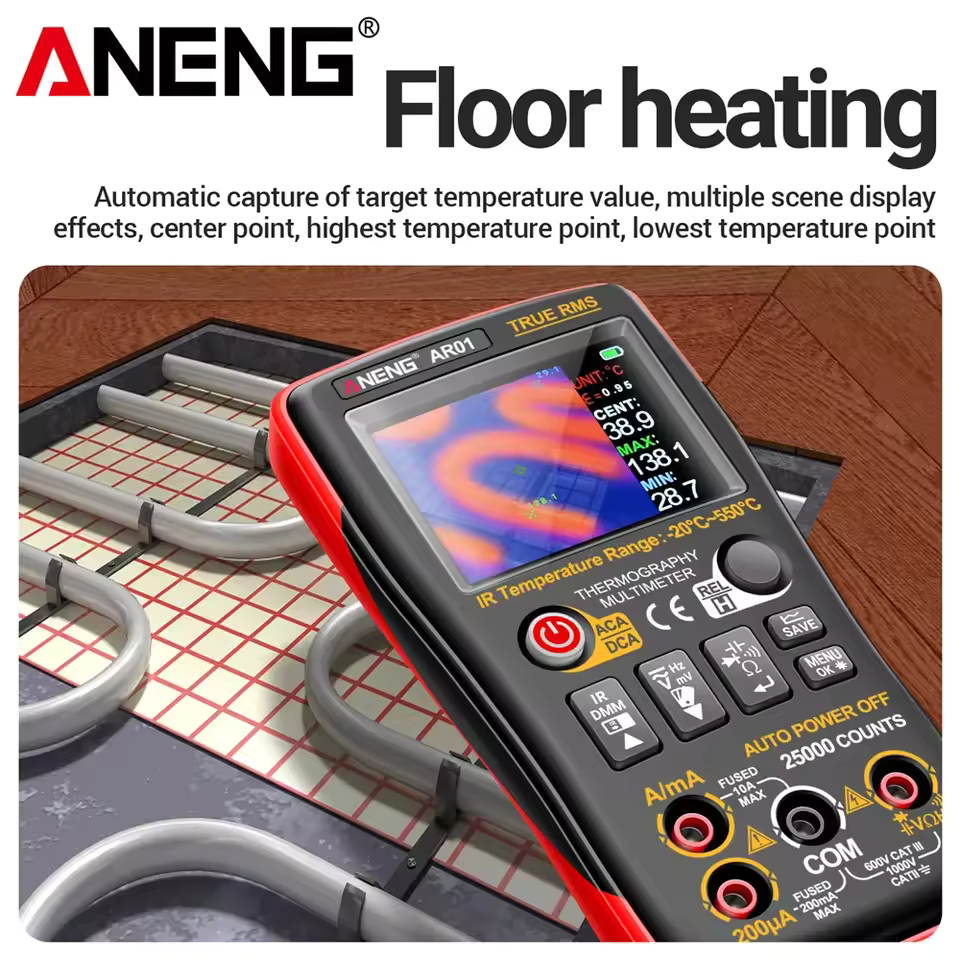

Thermal Imaging

• Infrared resolution: 32×32

• Temperature measurement range: -20 °C to 550 °C

• Adjustable emissivity (0.10 to 1.00)

• Multiple color palettes (black & white, iron red, heat, rainbow)

• Automatic capture of high/low/real-time temperature readings

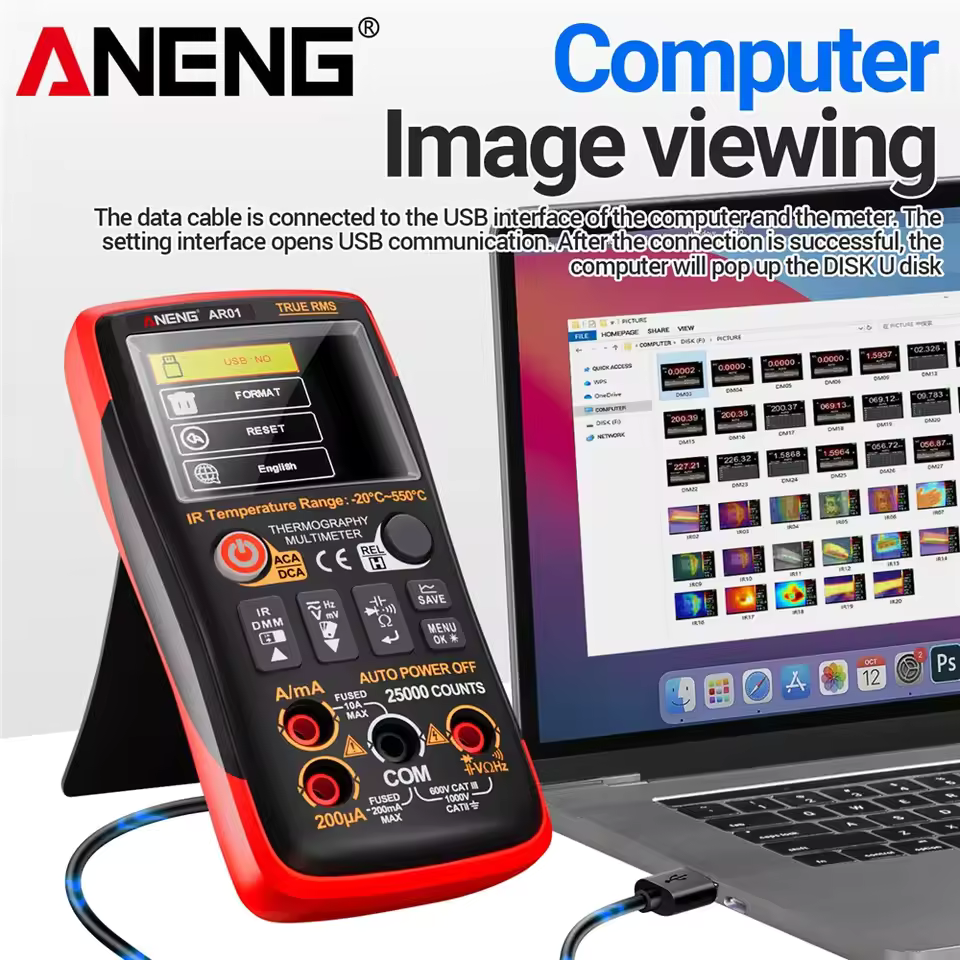

• Thermal images and screenshots can be stored and viewed after USB transfer

Other Features

• Low battery indication

• Flashlight illumination

• Adjustable auto power-off settings

• USB connectivity for charging and data transfer
