Description

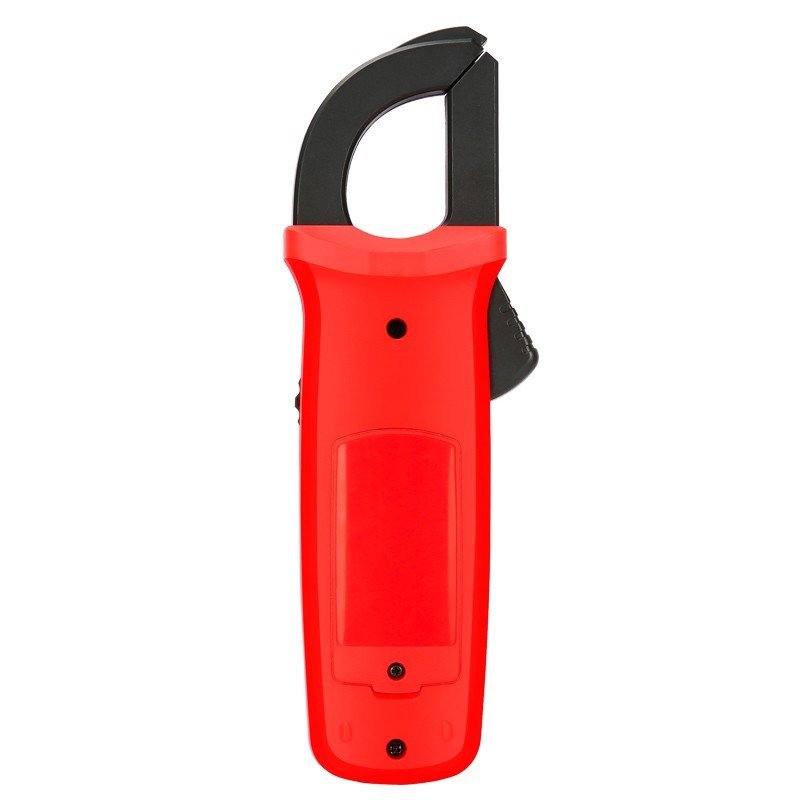

The clamp meter measures DC voltage, AC voltage and current, capacity, temperature and resistance. Equipped with diode test, circuit continuity test and voltage frequency measurement. Uni-T UT202+
Features
- Parameters
- AC current (A) 4A / 40A / 400A ± (2% + 10)
- AC current frequency (Hz) 50 Hz to 100 Hz ± (1% + 5)
- AC voltage (V) 4V / 40V / 400V / 600V ± (0.8% + 5)
- AC voltage frequency (Hz) 10 Hz to 10 kHz ± (1% + 5)
- DC voltage (A) 400mV / 4V / 40V / 400V / 600V ± (0.5% + 2)
- Resistance (Ω) 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ ± (0.8% + 2)
- Capacitance (F) 4nF/40nF/400nF/4uF/40uF/400uF/4mF ± (4% + 5)
- Temperature (?) -40? to 1000? ± (1.5% + 5)
- Functionalities
- Display counter 4000
- Automatic range
- Jaw opening 28 mm
- True RMS
- NCV
- Continuity test
- Diode test
- Relative mode
- MAX / MIN
- Data Retention
- Low battery indicator
- Automatic shutdown
- General
- Power supply: 2 x 1.5 V battery (R3)
- LCD size: 37 × 25mm
- Color: Red-gray
- Dimensions: 215 × 63 × 36 mm
- Weight 248 g
