Description
| Specifications | Range | UT33A+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 600V | ±(0.7%+3) |
| 200V/600V | ||
| DC current (A) | 10A | ±(1%+2) |
| 200μA/200mA/10A | ||
| 2000μA/20mA/200mA/10A | ||
| AC current (A) | 10A | ±(1.2%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ | ±(0.8%+2) |
| /2MΩ/20MΩ/200MΩ | ||
| 200Ω/2kΩ/20kΩ | ||
| /200kΩ/20MΩ/200MΩ | ||
| 200Ω/2kΩ/20kΩ | ||
| /200kΩ/20MΩ | ||
| Capacitance (F) | 2mF | ±(4%+8) |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |

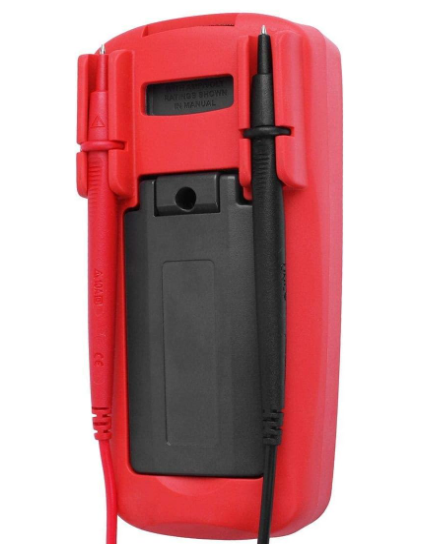

| 2m drop test/ Test probe holder | √ | |
| Range selection | Auto | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product color | Red and grey | |
| Product size | 134mm x 77mm x 47mm | |
| Standard accessories | Batteries, test leads | |
| Standard individual packing | Gift box, English manual | |
