Description

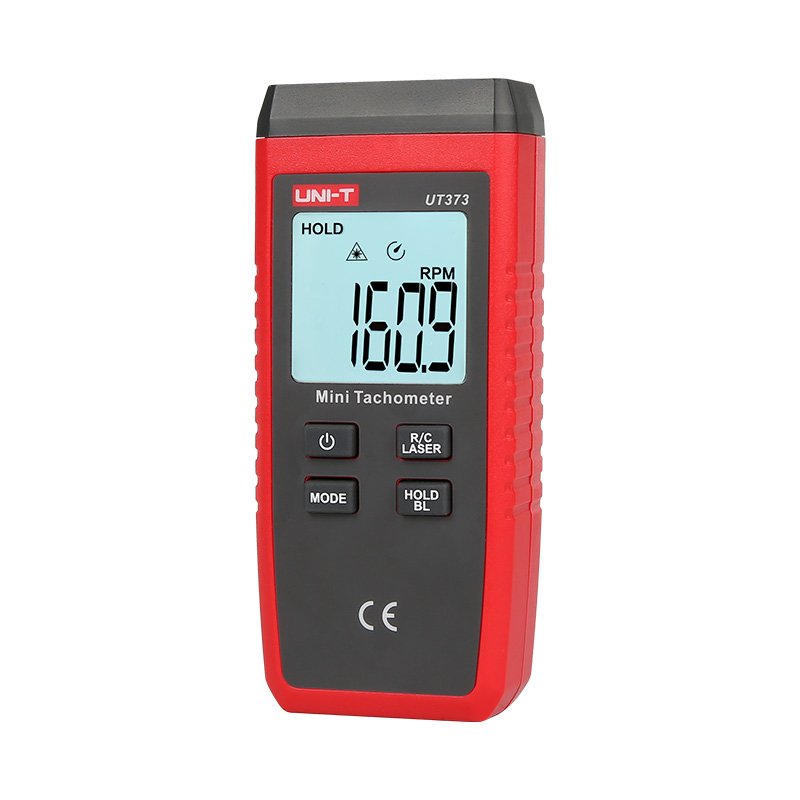

UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method.
Features of UT373 Mini Tachometer
Certificates: CE, UKCA
● Auto range
● Up to 99999 display; overload diaplay, “OL”
● RPM measurement and revolution count
● Max/Min, data hold
● Singal trigger/laser-on indication
● Low battery/auto power off indication
● LCD backlight
Specifications of UT373 Mini Tachometer
Specifications Range Resolution Accuracy
RPM measurement 10.0~9999.9RPM 0.1 ±(0.04%+2)
10000~99999RPM 1
Counting measurement 0~99999 counts 1 ±1
Features
Auto range √
Auto power off √
Low battery indication √
Laser-on indication √
Data hold √
MAX/MIN √
Rotating speed/count function switching √
Overload indication √
LCD backlight √
Refresh rate 1s to 7s (>120rpm for 1s)
Sensor type Photodiode and laser tube
Target distance 50mm~200mm
Measuring angle ±30° from perpendicular
Drop test 1m
General Characterisitics
Power 1.5V battery (R03) x 3
Display 5-digit segment code; 99999 max display
Product color Red and grey
Product net weight 85g (excluding battery)
Product size 183.8mm x 56mm x 34mm
Standard accessories Batteries, reflective tape
Standard individual packing Bubble bag, gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 272mm x 225mm x 220mm
Standard carton gross weight 3kg
