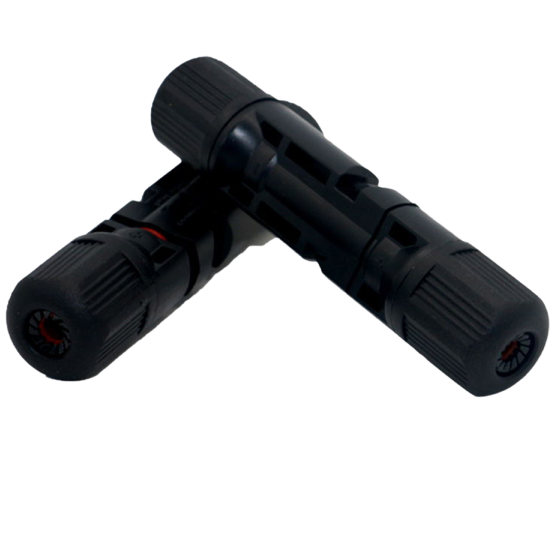

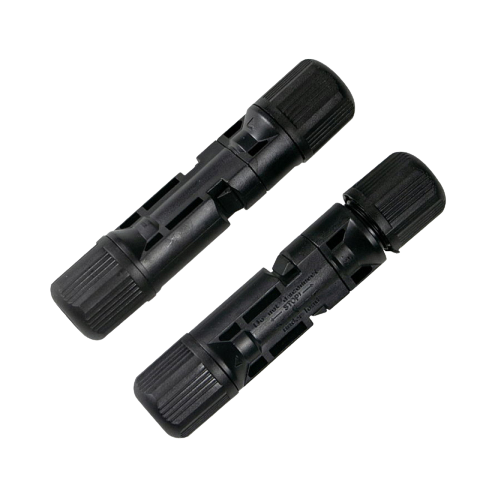

YMC4-1K Photovoltaic Connector PPO 30A 1000V Cable

Description

Product features:

• Simple on-site processing
• Mating safety provided by keyed housings
• Multiple plugging and unplugging cycles
• High Voltage and Current carrying capacity
• Waterproof grade: IP67
• Housing made of PPO material, anti-UV
• CE approved
• Competitive price

Technical data:

• Name: Solar connector
• Rated current: 30A
• Rated voltage: 1000v DC
• Test voltage: 6000V(50Hz, 1min)
• Overvoltage type/pollution degree: CAT Ⅲ /2
• Contact resistance of plug connector: 1mΩ
• Contact material: Copper, Tin-plated
• Insulation material: PPO
• Degree of protection: IP67
• Safety class: Ⅱ
• Suitable cable: 2.5mm2, 4mm2, 6mm2
• Insertion force/withdrawal force: ≤50N/≥50N
• Connecting system: Crimp connection
• Operating Temperature: -40℃–+85℃
