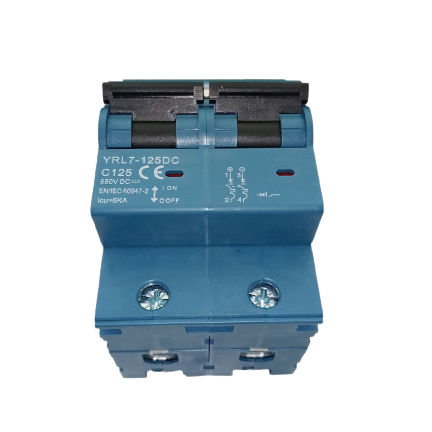

YRL7-125DC Circuit Breaker 2P 550V 125A

Description

YRL7-125DC high breaking capacity circuit breaker is specially for solar PV system. The current is form 63A to 125A and voltage up to 550VDC. Standard according to IEC/EN60947-2.

Products features:

1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic

Technical data:

• PV Series Circuit Breaker: YRL7-125DC 2P
• Standard: IEC60947-2
• Poles: 2P
• Rated Current In (A): 125
• Rated Operating Voltage: 550VDC
• Ultimate breaking capacity lcu (kA): 10
• MECHANICAL: 20000
• ELECTRIC: 6000
• Installation: DIN Standard rail
