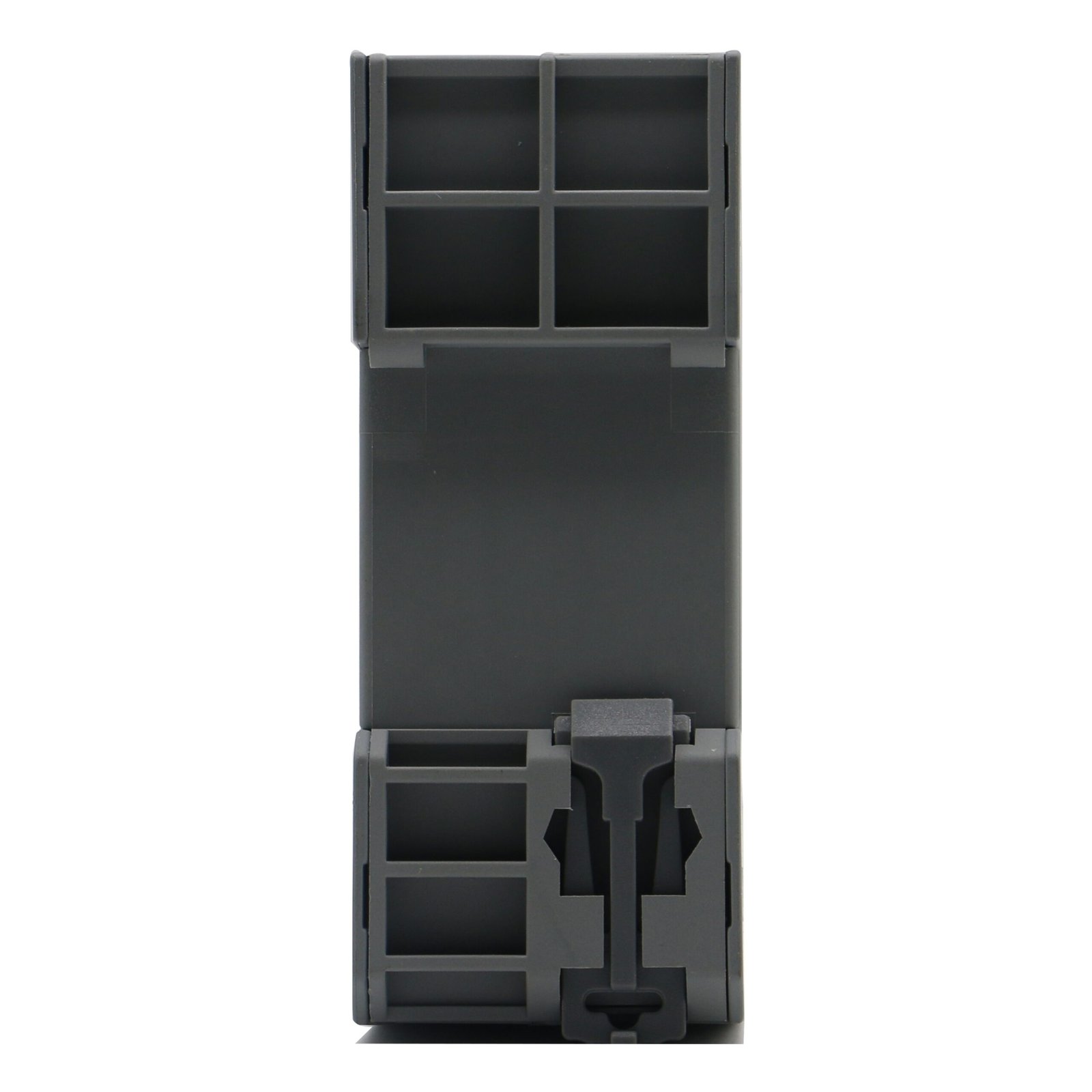

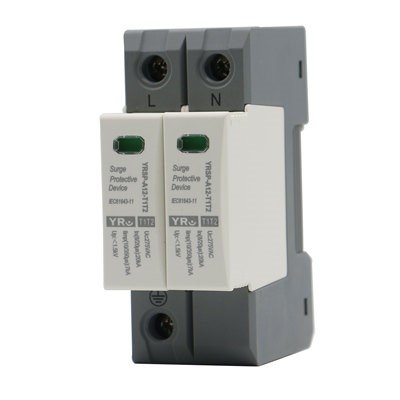

YRSP-A12 AC Surge Protection Device 2P 20-40KA Iimp:7kA T1+T2

Description

YRSP-A12 AC Surge Protection Device 2P 20-40KA Iimp:7kA T1+T2

YTTS1-C40 series surge protection device (in short SPD, alias: surge suppressor surge arrester) is suitable for TN-S, TN-C-S, TT, IT etc.. , power supply system of AC 50/60Hz,<380V, installed on the joint of LPZ1 or LPZ2 and LPZ3. It’s designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.

Products features:

• Three-phase protection for TN-S system
• Pluggable module, easy for installation and maintenance
• High discharge capacity, quick response
• Double thermal disconnection devices, providing more reliable protection
• Green window will change when fault and also provide remote alarm control at the same time
• Rated Voltage (max. continuous voltage) – UC : 275V~
• Nominal discharge current(8/20μs) – In: 20kA
• discharge current(10/350μs) – Imax: 40kA
• voltage protection level – Up: ≤1.8kV
• Response time – TA: ≤25ns(L-N)
• Back up fuse: 125AgL/gG
• Operating Temperature range – Tu: -40~80℃
• Cross-sectional area: 1.5mm²~25mm² solid/35mm²flexible
• Mounting on: 35 DIN rail
• Enclosure material: Purple module & light gray,UL94-V0
• Dimension: 4mods
• Type of remote signaling capacity: Switching contact
• Switching Capacity: AC:250V/0.5A; DC:250V/0.1A; 125V/0.2A; 75V/0.5A
• Test standards: GB 18802.1; IEC 61643-1
